Below is a general list of components and parts needed to refurbish the front wheel bearings and or change the front brake pads and rotors. The part numbers are based off of a Land Cruiser and are compatible with the LX470. Note some differences in 2003+, you should of course always verify part numbers.

In addition to basic automotive hand tools and these parts you may also need several special tools including:

  • brass hammer or drift
  • 54mm Lock Nut Wrench or socket (OTC6612) AMAZON
  • snap ring pliers/spreader SEARS
  • spring type scale AMAZON
  • bearing press or tap



Item Qty PN# Note
Pad Retainer Pin 4 90240-06024 Replace if Needed (1998-)
Pad Retainer Fit Kit 1 04947-60100 Replace (1998-)
Anti Squeal Shim Kit 1 04945-60020 Replace (1998-2002)
Anti Squeal Shim Kit 1 04945-60010 Replace (2003-)
Brake Pad  Kit 1 04465-60220 Set, R/L (1998-2002)
Brake Pad  Kit 1 04465-60230 Set, R/L (2003-)
Caliper RH 1 47730-60080 (1998-2002)
Caliper LH 1 47750-60080 (1998-2002)
Caliper RH 1 47730-60090 (2003-)
Caliper LH 1 47750-60090 (2003-)
Cylinder Kit 1 04479-60040 (1998-)
Brake Disc 2 43512-60171 Replace or Surface (1998-)
Item Qty PN# Note
Oil Seal 2 90311-70011 Replace
Inner Bearing 2 90080-36098 Replace
Outer Race 2 with bearing Replace
Outer Race 2 with bearing Replace
Outer Bearing 2 90080-36067 Replace
Thrust Washer 2 90214-42030 Replace if Needed
Adjusting Nut 2 43521-60011 Replace if Needed
Lock Washer 2 90215-42025 Replace
Gasket 2 43422-60070 Replace
Flange Stud 12 90116-10201 Replace if Needed
Flange Cone Washer 12 42323-60030 Replace if Needed
Flange Plate Washer 12 90201-10075 Replace if Needed
Flange Nut 12 90170-10039 Replace if Needed
Snap Ring 2 See listing below Replace Vehicle Spec Svc Tolerance
Dust Cap 2 43423-35010 Replace
Snap Ring 90520-31005 2.8mm
90520-31006 2.6mm
90520-31007 2.4mm
90520-31008 2.2mm
90520-31009 2.0mm
90520-31010 1.8mm

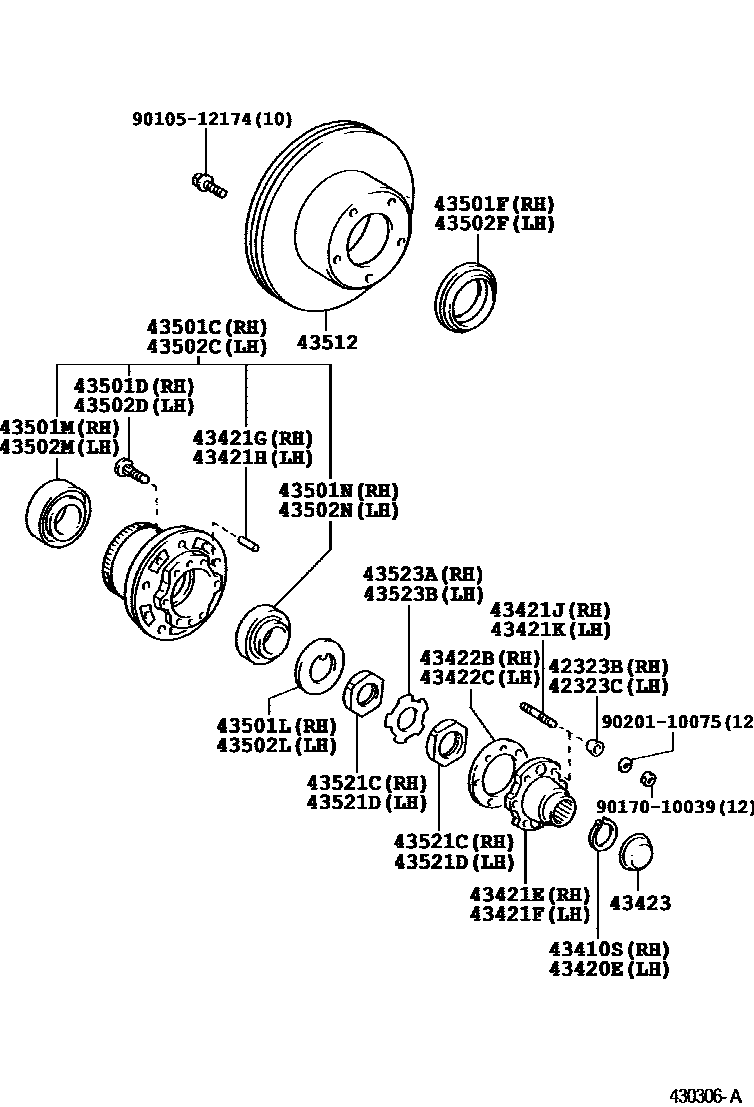

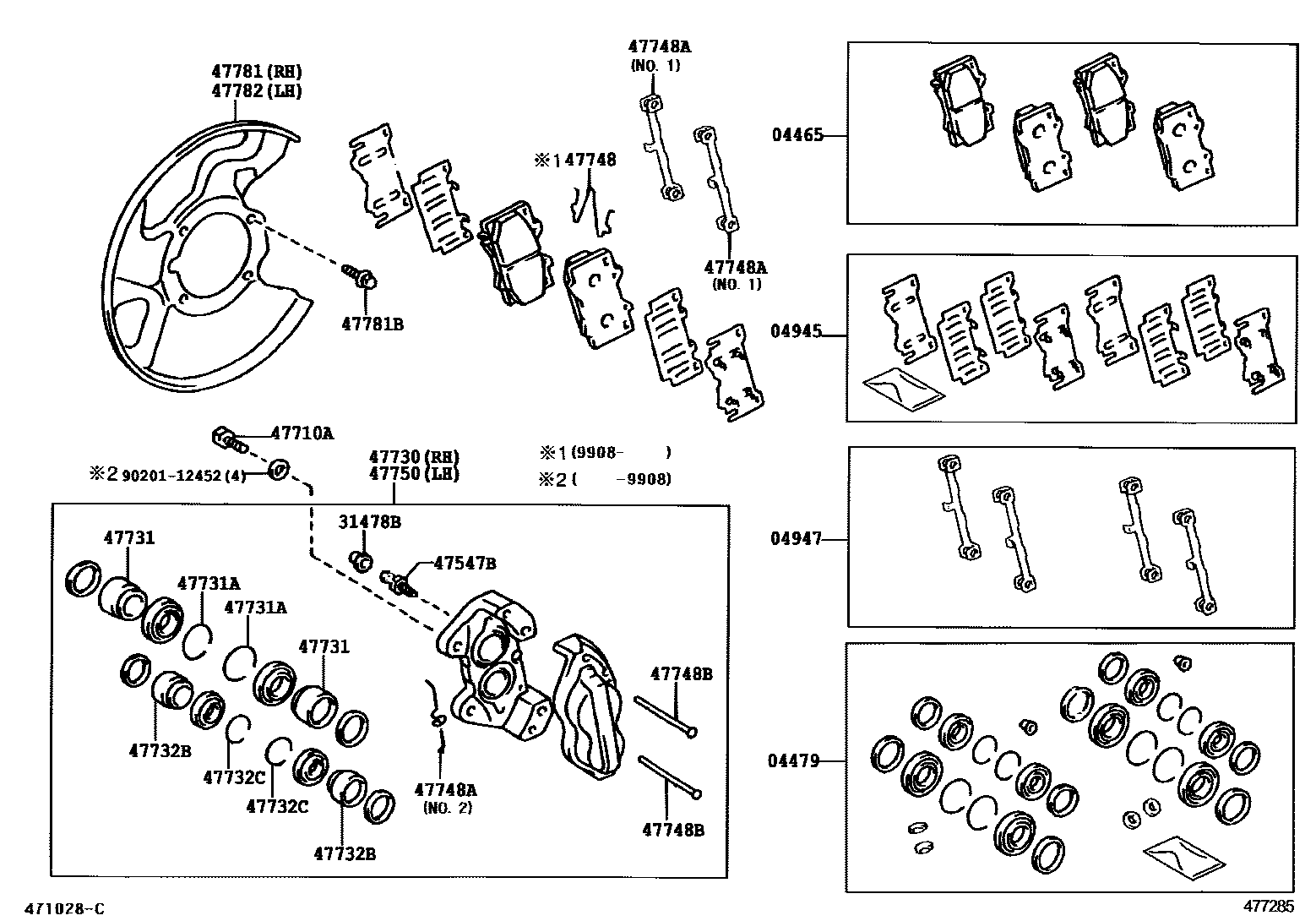

Diagrams:
